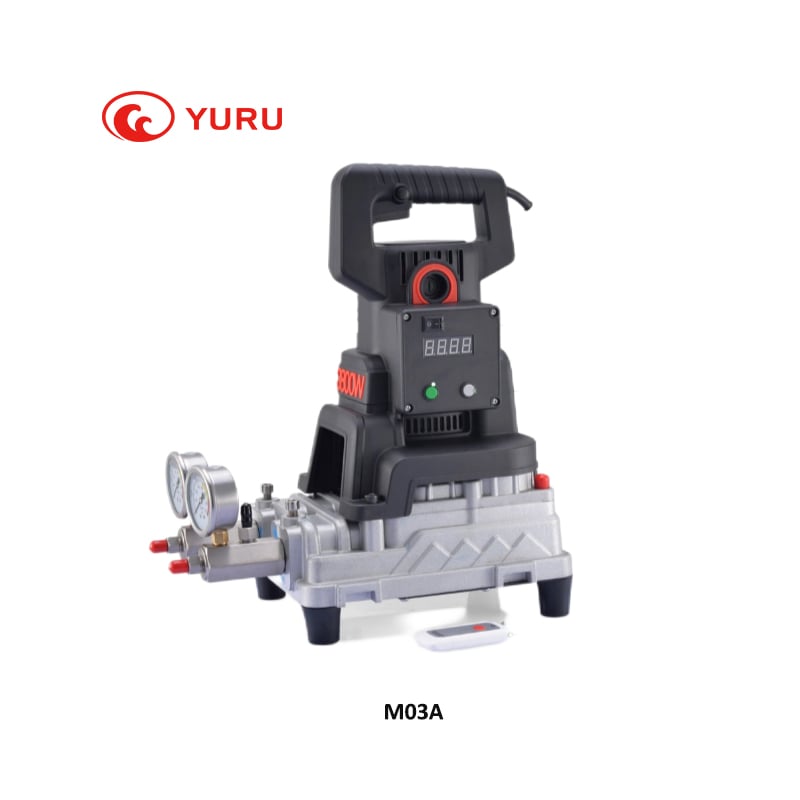

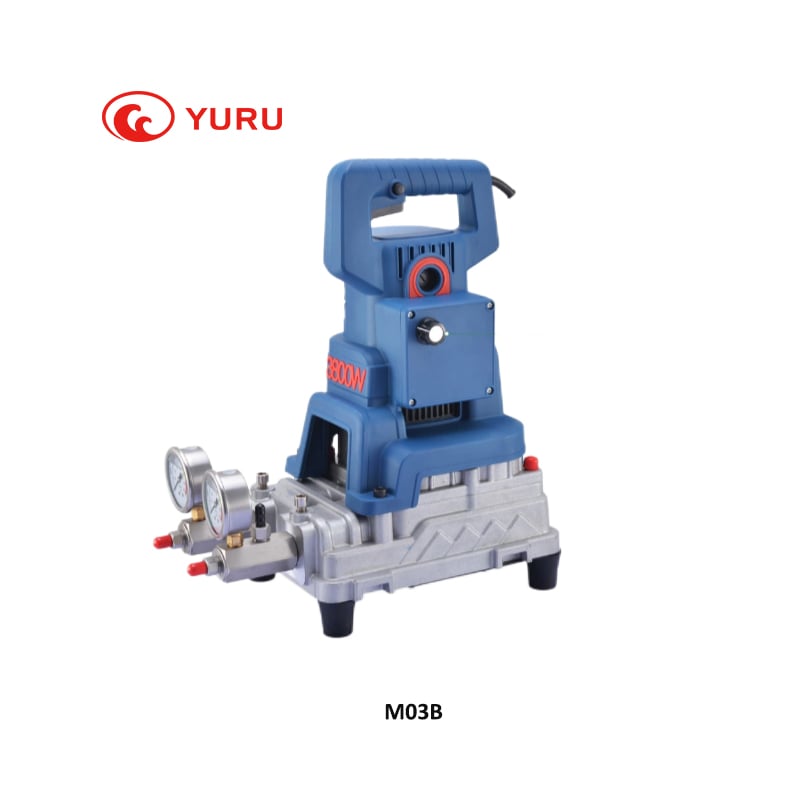

Yuru 03AB Water curing grouting machine

Description:

The high-pressure water curing grouting machine is a professional machine that is used for high-pressure chemical grouting of structures and uses chemical grouting materials. It has ultra-high pressure and does not require an air pressure source, so it can be constructed quickly.

A complete grouting machine mainly consists of an electric drill, chassis, bracket, material cup, pump, tee, pressure gauge, high-pressure pipe and switch valve group. It is labor-saving and easy to carry and move. It completely solves the inconvenience of relying on traditional hand-pressed air sources for power and carrying bulky machinery; the structural design is scientific and simple, and it can be maintained without special training. It also adds a humanized self-priming feeding system. It uses mechanical power to increase the working pressure to over 4500psi (300kg/cm2) in 3-6 seconds. The liquid water-stop agent can be effectively poured into 0.1mm fine cracks, and the construction efficiency is three times faster than traditional technology. Above, the waterproof and leak-proof effect is more lasting and effective. It is the first choice equipment for leakage prevention and crack reinforcement in construction projects, underground projects, water conservancy projects, environmental protection projects, municipal administration, subways, tunnels, and culvert projects. It is the best choice for professional water stop construction workers.

Applications:

1. Plugging and sealing cracks, expansion joints, construction joints and structural joints in various buildings and underground concrete projects.

2. Drilling protection wall sealing and reinforcement in geological drilling engineering.

3. Grouting of reservoir dams in water conservancy and hydropower projects, sealing and preventing leakage of cracks in water conveyance tunnels, and anti-seepage reinforcement of concrete cracks in dam bodies.

4. Water leakage from subways, tunnels, culverts, sewage treatment tanks, and concrete cracks should be plugged with water.

5. Water leaks from basements, underground garages, underground passages, and concrete cracks, and the water should be used to plug the leaks.

6. Cracks in roof concrete slabs, wall pipes, corners, and leaking water should be plugged with water.

7. For structural cracks in concrete structures, beams, columns, and plates.

Specifications:

Competitive Advantage:

1. Environmental protection: good mechanical performance, no noise and no pollution.

2. Portable: small size, light weight, easy to carry and simple to operate.

3. Efficient: advanced technology, saving time, labor and high efficiency.

4. Safety: reliable technology, reasonable structure and safe to use.

5. Continuous pressure: Continuous high pressure allows the agent to effectively block the micro gaps, micro cracks, micro pores and capillary filling in the concrete structure.

6. No damage to the structure: The grouting nozzle is directly installed on the concrete cracks for grouting. No grooves are picked or pipes are buried, and no damage is caused to the structure.

7. Bring water to plug leaks: For various gap leaks, honeycomb leaks, and underground water inflows, water can be directly injected to plug leaks. The slurry can be effectively injected deep into the cracks.

8. A wide range of supporting materials can be used: polyurethane, epoxy resin, acrylic resin and other non-granular low-viscosity slurry materials can be used.

9. Multi-function: One machine can be used for multiple purposes, including leak-stopping grouting, consolidation grouting, and crack reinforcing grouting.

10. Durable: body parts will not deform. It is simple to maintain, easy to repair, sturdy and durable, and easy to clean.

Maintenance：

1. After grouting with this product, put the two suction pipes into clean water, turn on the machine and clean the residual grouting liquid in the pump body and pipes until they are clean.

2. Remove the high-pressure pipe, put the suction pipe into the engine oil, wait until the oil is sprayed out from the discharge port, and the maintenance is completed.
