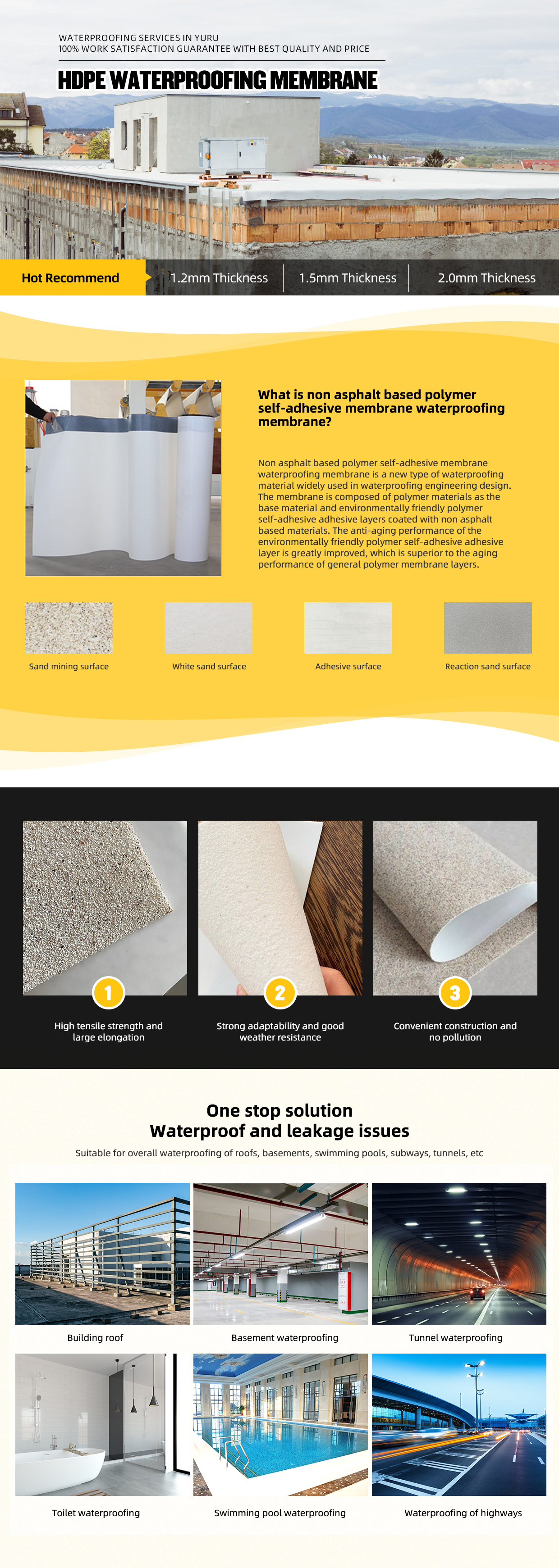

Yuru HDPE waterproofing membrane

Description:

Polymer self-adhesive film (non-asphalt-based) waterproofing membrane is a waterproof material specially developed for building waterproofing pre-paving parts. The membrane is composed of polymer sheet, polymer self-adhesive film, and anti-adhesive layer. Non-asphalt-based polymer pre-paved waterproofing membrane developed to achieve integration with the concrete structure.

The polymer self-adhesive film and the uninitialized cement slurry in the concrete penetrate through the anti-adhesive layer through creep under pressure, forming effective interpenetrating bonding and huge intermolecular force. After the concrete is cured, the gap between the polymer pre-paved waterproof membrane and the main body of the structure is permanently sealed to the maximum extent, completely eliminating water channels.

Specifications and models:

Length: 20m; Width: 2m; Thickness: 1.2mm, 1.5mm, 1.7mm, 2.0mm.

Features:

1. Good tensile properties, good waterproof properties, good anti-trampling and anti-sand pollution effects, strong UV resistance, and strong water immersion resistance.

2. High peel strength, completely bonded to the structure, eliminating the possibility of water channeling.

3. It has good impact resistance. When used for waterproofing under the base plate, the protective layer can be omitted and the base plate steel bars can be tied directly on the waterproof membrane.

4. Concrete requires only minimal surface treatment and is not affected by the moisture of the base layer. It is laid loosely on the concrete base.

5. It has excellent chemical corrosion resistance and can resist corrosion from concrete and underground alkaline water. It has good resistance to microbial bacteria, mold and corrosion resistance.

6. Shorten the construction period and reduce the cost. The polymer self-adhesive membrane waterproofing membrane has low requirements on the base surface conditions, and the moisture content of the base surface has no impact on the waterproofing work. It does not require a leveling layer, isolation layer, or protective layer, which reduces the amount of earthwork excavation, thereby shortening the construction period and reducing the cost.

7. Safety and environmental protection. Cold construction, no heating required, no adhesive required.

Applications:

HDPE polymer self-adhesive film waterproofing membrane can be used in various tunnels and underground space waterproofing projects, such as road tunnels, railway tunnels, power tunnels, hydraulic tunnels, subway tunnels, caverns and other structures and structures that use external defense Underground space constructed by internal bonding method.

Specifications:

Competitive Advantage:

·Unique formula, made of non-asphalt-based self-adhesive adhesive and polymer sheet.

·It has super strong bonding performance, and the peeling strength is 2-3 times that of ordinary self-adhesive membranes. It has high tear resistance, waterproof and impermeability, and strong hydrolysis resistance.

·Good low temperature flexibility and can still maintain good flexibility under low temperature conditions of -30°C.

·It is suitable for pre-paved anti-adhesive waterproofing projects in underground and tunnel projects. It has the impact resistance of directly tying steel bars and pouring concrete without a protective layer after the construction of the waterproof layer is completed.

·Reliable waterproof performance, the membrane has the advantages of polymer waterproof membrane and self-adhesive membrane.

·The base surface requirement is low, which saves the construction period. There is no need to level the base layer with cement mortar, and the construction can be done on wet base surfaces.

·No need for primer and base layer treatment, and it is not affected by weather, which can save construction period and reduce project cost.

·The construction is simple and fast, and the construction methods are flexible and diverse. Wide coils can be produced according to actual needs, achieving less overlap, fast construction, low consumption, and low cost.

·During construction, construction methods such as empty paving and mechanical fixing can be selected according to the project site conditions. The construction is more flexible and the waterproofing effect is better.

·Green, safe and environmentally friendly, the construction process does not require solvents and fuels, avoiding environmental pollution and fire hazards, and saving energy.

·The waterproofing membrane and the base layer are laid bare and will not be affected by the settlement and deformation of the base layer.

01.Construction conditions：

1) Underground waterproofing projects shall not be constructed in rainy days, snowy days, and winds of level 5 and above; the ambient temperature conditions for waterproofing material construction should comply with the following regulations.

2) High-density polyethylene (HDPE) self-adhesive film waterproofing membrane: the construction temperature should not be lower than 5℃.

02 Construction points：

Base layer cleaning: remove and clean the protrusions on the base layer before waterproofing construction;

Paving the membrane: Place the anti-adhesive layer of the membrane facing up and lay it on the cushion;

Coiled material overlap:long edge overlap: remove the isolation film on the rolled material overlap and directly overlap and roll it;Short side overlap: Special self-adhesive tape (single- and double-sided) is used when the coils are overlapped, and the overlap can also be welded;

Follow-up construction:After the construction of the waterproof layer is completed, steel bars can be tied and concrete poured.

02Matters need attention：

※Products of different types and specifications should be stacked separately to avoid mixing.

※The height of the rolled materials should not exceed five layers when laid flat. They should be stacked in a single layer when stored vertically. Avoid tilting or lateral pressure during transportation.

※Avoid sunlight and rain, cover with felt cloth if necessary, pay attention to ventilation, storage temperature should not be higher than 45℃.

※No contact with acids, alkalis, oils and organic solvents.
